DRAKE • 7. 2 kW Solar Energy System

ACE, LLC SOLAR completed a 7.2kW solar system installation in April 2014 for Gaylon Drake, CPA, in Cullman, Alabama.

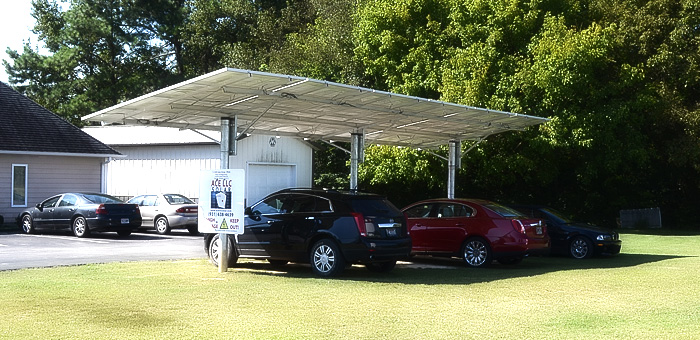

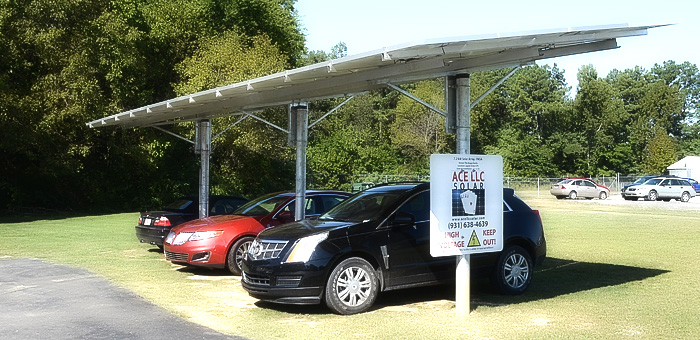

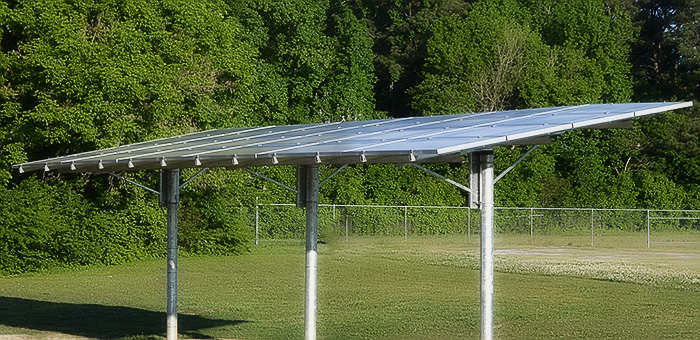

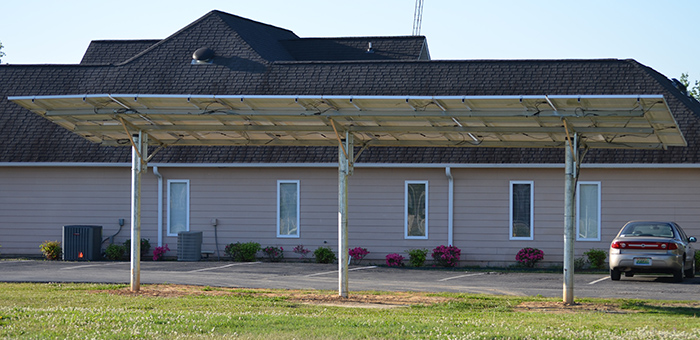

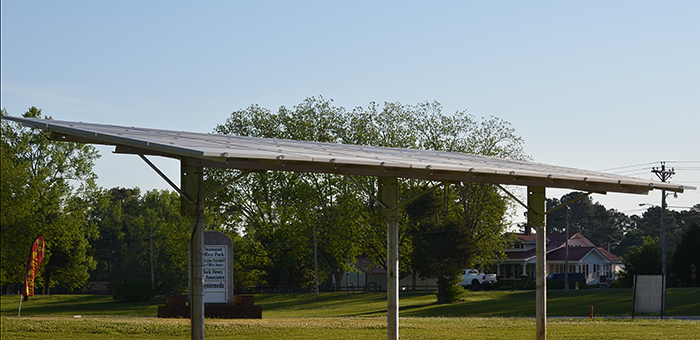

The Drake 7.2kW solar system installation project was installed at the business location of Gaylon Drake, CPA. It is a ground mount structure that was built to also allow for parking beneath the solar system, which could also be described as a parking area solar array (PASA). The system is a parallel / behind the meter installation.

sun icon 7.2 kW System Specifications:
  • ( 24 ) SUNIVA 300 OPTXXX SERIES: 72 cell modules. Marine grade aluminum silver or black frame (w/ white or black back sheet); positive only tolerance; 25 year linear warranty; rigorous quality management.

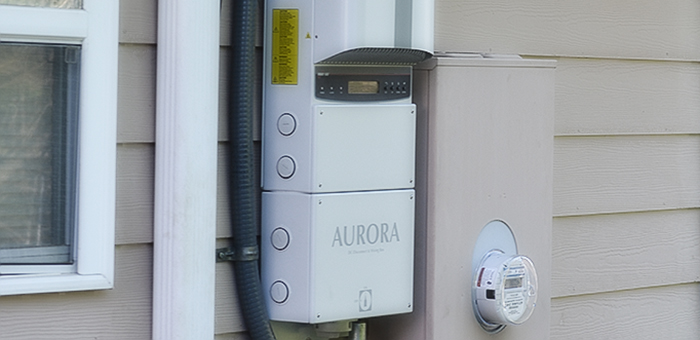

  • ( 1 ) POWER-ONE Aurora PVI-6000 (3) OUTD-US Inverter. Designed for residential and commercial PV installations, these inverters fills a specific niche in the Aurora product line to cater for those installations producing between 25kw and 50kw.
  • ( 1 ) SOLAR FLEXRACK Ground Mount solar racking system. Durable, can adapt to any terrain, and are certified to withstand heavy wind, rain and snow loads.
